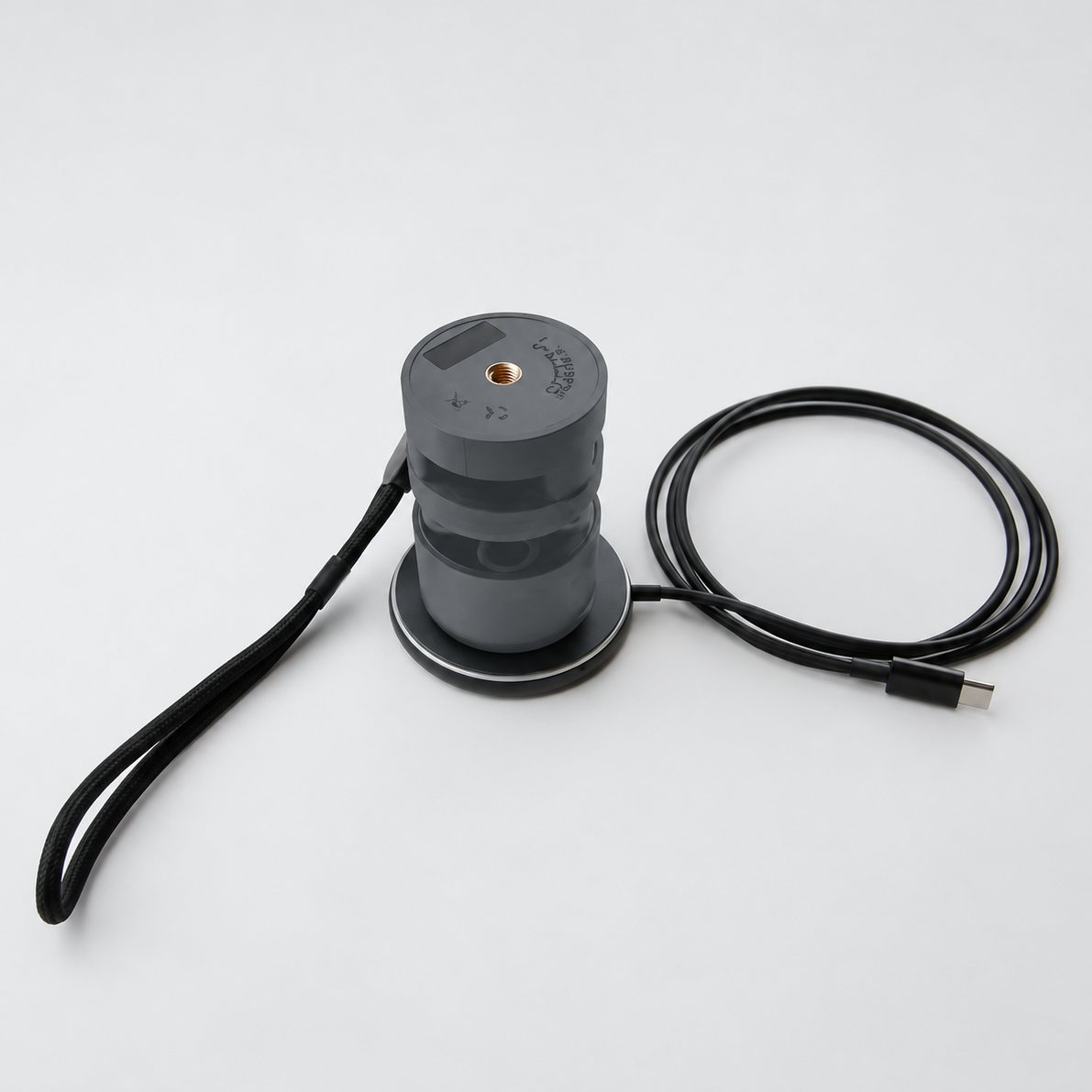

Calypso Mini All-in-One Ballistics CMI1086

What it does.

Calypso Mini All In One Ballistics CMI1086 is a compact ultrasonic weather meter designed for ballistic applications. It measures apparent and real wind speed and direction together with temperature, humidity and atmospheric pressure, with measurement data available through the Calypso AnemoTracker App. Four ultrasonic transducers provide wind measurement without moving parts, while integrated environmental sensors measure temperature, humidity and pressure. Technical specifications Wind speed Range: 0.5–45 m/s (1.12–100 mph) Accuracy: 0.3 m/s or 3% at 0–16 m/s; 5% at 16–45 m/s Resolution: 0.01 m/s Wind direction Range: 0–359° Accuracy: 3° at 1–5 m/s; 1° at 5–16 m/s; 6° at 16–45 m/s Resolution: 1° Temperature Range: −15 to +60°C (5–140°F) Accuracy: ±0.5°C at 25°C Resolution: 0.01°C Humidity Range: 10–90% RH Accuracy: ±3.5% Resolution: 1% Atmospheric pressure Range: 500–1200 hPa Accuracy: ±1 hPa Resolution: 0.1 hPa Connectivity & data Bluetooth: BLE 5.1 or later Bluetooth range: up to 30 m / 98 ft in free space Sample rate: 1 Hz Firmware: upgradable via Bluetooth Configurable units via App Wind: m/s, km/h, knots, mph Temperature: Celsius, Fahrenheit or Kelvin Humidity: % Pressure: hPa, inHg, mmHg, kPa or atm Power Battery powered Charging: Wireless Qi Active battery life: up to 150 hours Standby battery life: up to 2000 hours Sensors 4 × ultrasonic transducers SHT40, DPS368 & NTCLE350E4103FHBO Construction & dimensions Diameter: 43 mm Height: 70 mm Weight: 85 g Material: black injected engineering plastic Mounting 1/4" female thread Standard tripod mount included Compatible mast mount: CMI1028 Compatible phone mount: CMI1023 Environmental Protection: IP66 Operating temperature: −15 to +60°C, if no frost Humidity range: 10–90% RH App compatibility Calypso AnemoTracker App
